Noise and Vibration Control Products

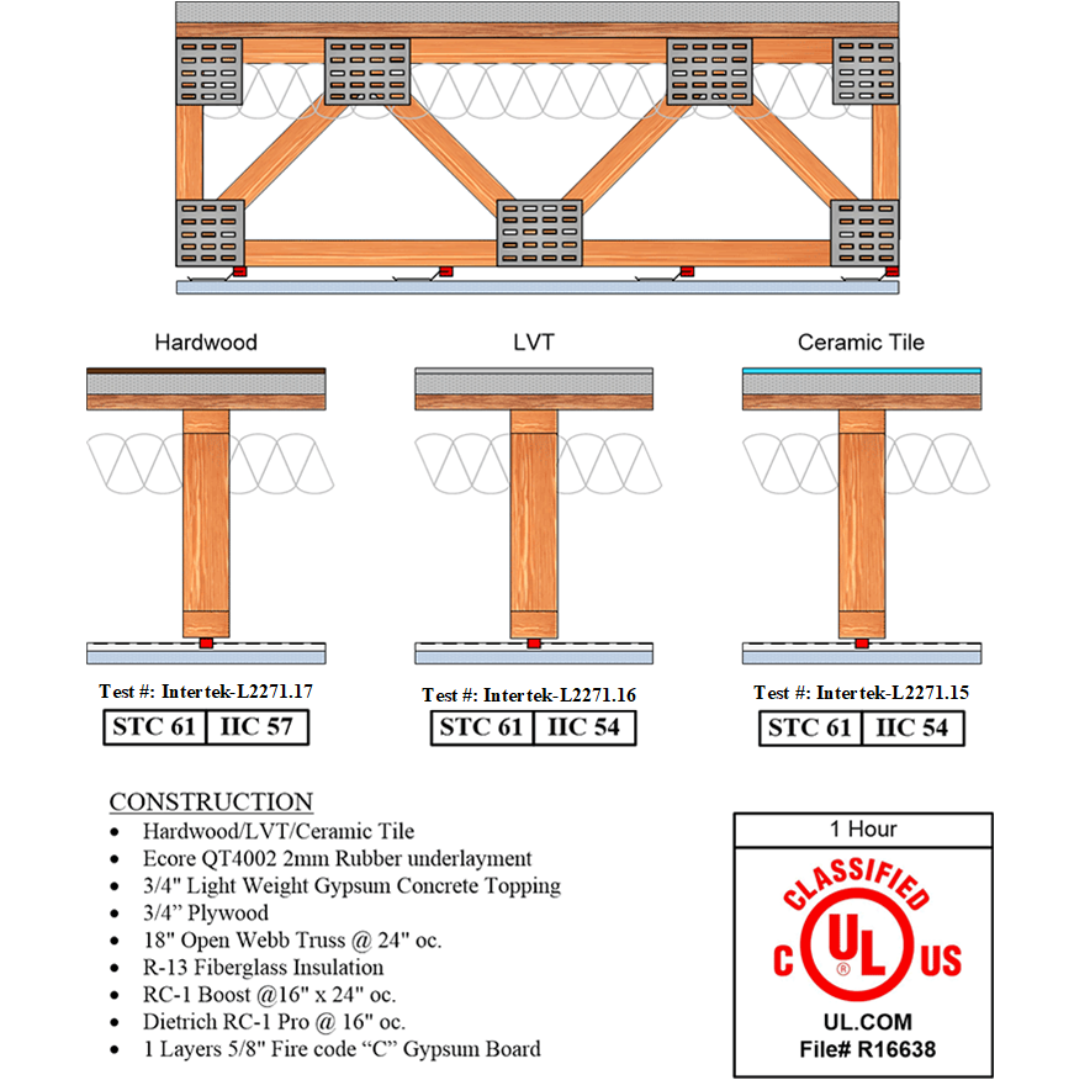

The RC-1 Boost, manufactured by PAC International, is designed for use with any wood or steel application where noise control is required. This includes, wood framed or steel framed wall and ceiling systems. The RC-1 Boost product decouples Generic RC-1 channel from the framing, enhancing the acoustical performance of RC-1 channel’s acoustical performance. With an Acoustical design load rating of 18 lbs. per isolator, the RC-1 Boost clip can support up to two layers of 5/8″ gypsum board when spaced no more than 16″ x 24″ oc. Final span of the RC-Boost isolators is determined by the UL Fire Resistive Design specifications. The RC-1 Boost clip Wraps around the screw edge of standard RC channel. The RC-1 Boost is screwed to the framing using the PAC International supplied RC-1 Boost Screw. The RC-Boost decouples the gypsum board from the structure stopping STC and IIC vibrations from entering the space adjacent. RC-1 Boost screw specifically designed to enhance the acoustical performance of the RC-1 Boost isolator. No substitutions allowed.
Benefits of RC-1 Boost:
- Improves overall performance of resilient channel
- Most cost-effective IIC improvement
- Alleviates supply issues with premium resilient channels
- Included in over 78+ UL fire-resistive designs
Specifications:
Acoustical Design Load: Up to 18 lbs.
Total Deflection: 2 mm
Double Deflection: Yes (1 mm)
Low VOC: Yes
Adjustable: No
Cavity Min: ¾”
Cavity Max: ¾”
Adjustment Limit: N/A
Use on Ceilings: Yes
Use on Walls: Yes
New Construction: Yes
Retro Fit: Yes
MADE IN USA (PAC International)
Applications:
- Wood, Steel, Metal and Concrete
- Apartments, Condos, Shared Living Spaces, Etc.
- Commercial Buildings
- Retail Spaces
- Recording Studios
- Home Theaters and Commercial Theaters
- Office Buildings and Conference Room
Technical Data:
- Divisions: 09-2000 09-8000 09-8500 10-2000 Applicable Standards ASTM International (ASTM)
- ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements
- ASTM E413 Classification for Rating Sound Insulation Underwriters Laboratories (UL)
- UL Fire Resistance Directory; Table 1, www.ul.com or visit here. Underwriters Laboratories of Canada (ULc)
