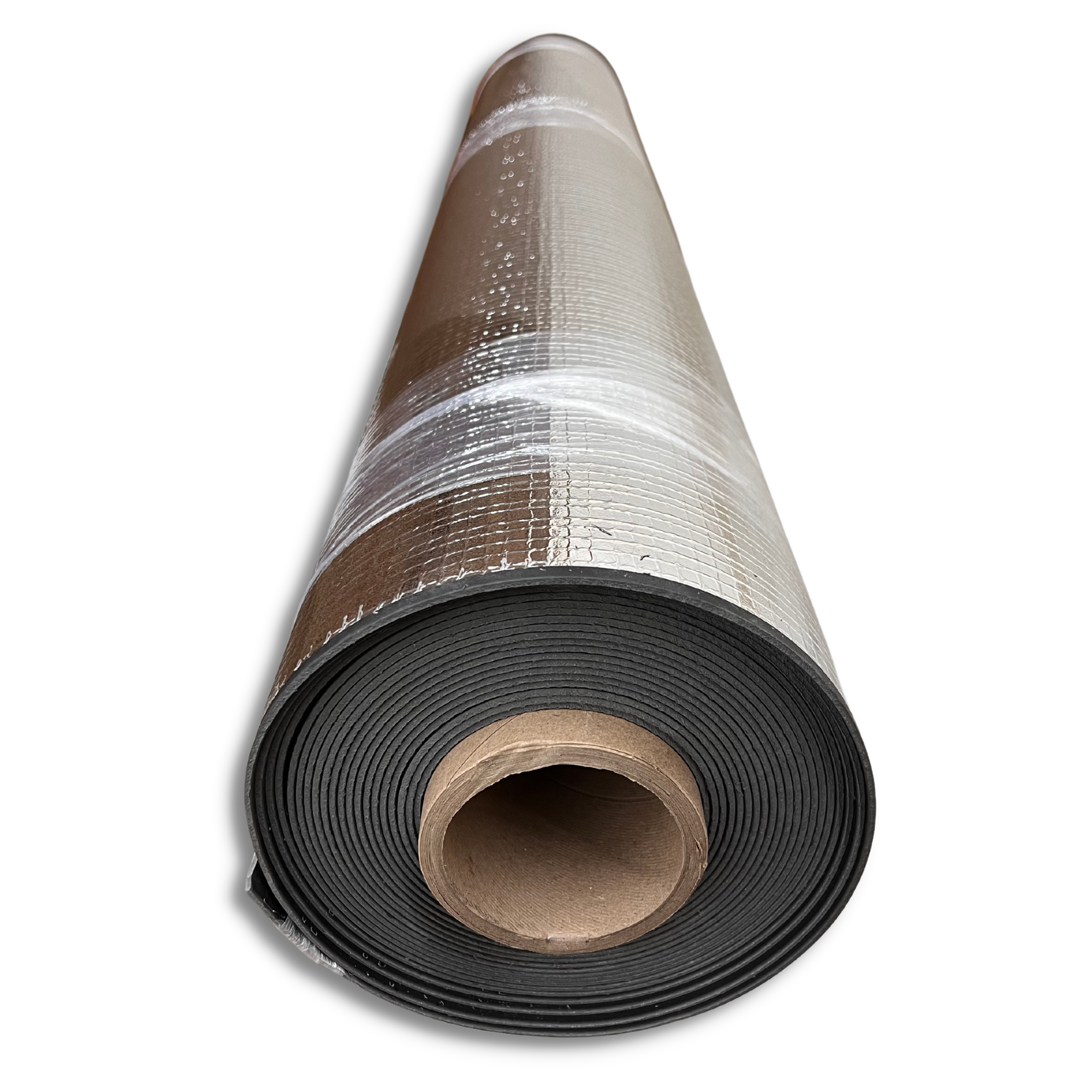

SilentWrap™ MLV w/ FSK (Foil Scrim)

MLV + FSK is a Mass loaded vinyl (MLV) barrier faced with a scrim reinforced aluminum foil on one side. This product is primarily used for wrapping noisy pipes, ducts and valves in a wide variety of applications. The durable reinforced foil facing serves as a protective jacket and readily accepts matching lag tape. MLV with FSK is ASTM E-84 Class A rated.

Documentation

MLV w/ FSK is a Mass loaded vinyl (MLV) barrier faced with a scrim reinforced aluminum foil on one side. This product is primarily used for wrapping noisy pipes, ducts and valves in a wide variety of applications. The durable reinforced foil facing serves as a protective jacket and readily accepts matching lag tape. MLV with FSK is ASTM E-84 Class A rated.

Features:

  1. Durability: MLV + FSK rolls come equipped with a scrim reinforced foil layer to add reinforcement.
  2. Easy to cut and install: MLV + FSK cuts very easily to size with a utility knife—use MLV anchors for simple installation
  3. Fire rated: MLV + FSK meets ASTM E-84 Class A Fire Rating
  4. High STC rating:

– 1.0# = STC 26

– 2.0# = STC 32

  1. Thermal Conductivity: MLV + FSK improves thermal conductivity
  2. Cost-Effective: low installation costs

Installation:

MLV anchors, vinyl tape

Standard Roll Sizes:

Type

Density

Roll Size

FSK-100

1 lb. / sq. ft.

48″ x 50′

FSK-100

1 lb. / sq. ft. 54″ x 30′
FSK-200 2 lbs. / sq. ft.

54″ x 30′



MLV + FSK “STC” Sound Transmission Coefficient



125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz STC

1.0#

11 15 21 27 33 39

26

2.0# 19 23 27 32 37 42

32



Also Available: SilentWrap™ with LAG (MLV w/ FSK + Quilted Fiberglass Blanket)
